88-A-1

PROJECTILE:

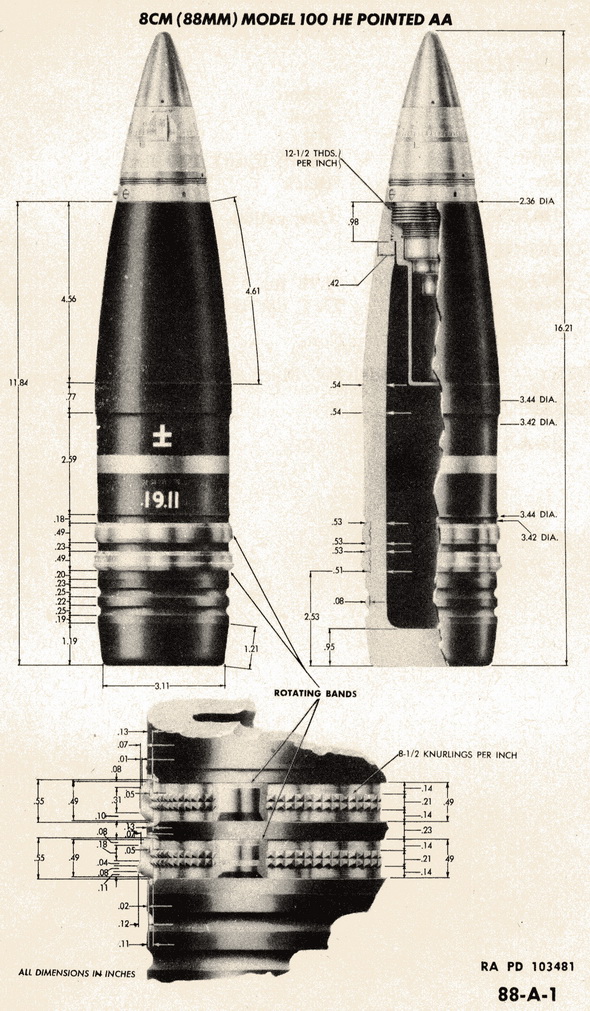

8 cm (88 mm) Model 100 HE Pointed AA

WEAPONS:

8 cm Model 99 AA Gun
PROJECTILE:

Caliber:

 88 mm

Kind:

 Shell

Type:

 HE

Weight:

 (With Fuze) 19.9 lbs.

Color:

Black

BANDS:

One yellow
CHARGE:

Weight:

 1.98 lbs.

Kind:

TNT has been found

TRACER:

None

FUZE:

Model 100 Mechanical Time Nose Fuze

REMARKS:
