TM E9-1901 - IDENTIFICATION OF JAPANESE SHELL AND SHELL FRGAMENTS;
LOCATION OF EMENY BATTERIES

PART TWO - READY REFERENCE SECTION
SECTION IX – PROJECTILE DATA AND ILLUSTRATIONS

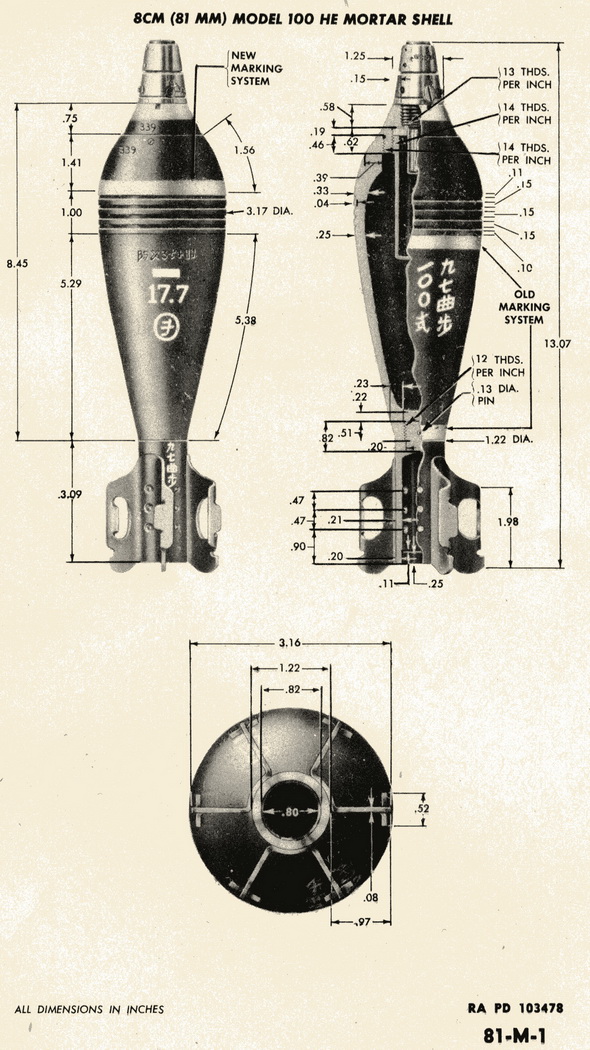

81-M-1

PROJECTILE:

8 cm (81 mm) Model 100 HE Mortar

WEAPONS:

8 cm Model 97 Mortar
PROJECTILE:

Caliber:

 81 mm

Kind:

 Mortar Shell

Type:

 HE

Weight:

 (Without Fuze and propelling charge) 6.75 lbs.

Color:

Black

BANDS:

One yellow
CHARGE:

Weight:

 1.18 lbs.

Kind:

TNT has been found

FUZE:

Model 100 Mortar Fuze

REMARKS:
