TM E9-1901 - IDENTIFICATION OF JAPANESE SHELL AND SHELL FRGAMENTS;
LOCATION OF EMENY BATTERIES

PART TWO - READY REFERENCE SECTION
SECTION IX – PROJECTILE DATA AND ILLUSTRATIONS

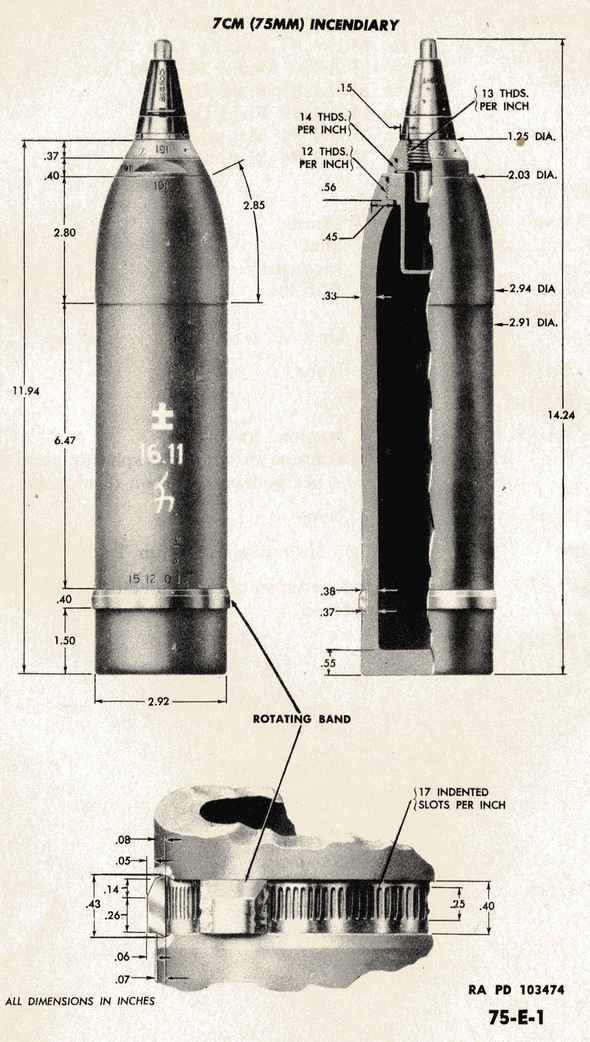

75-E-1

PROJECTILE:

7 cm (75 mm) INCENDIARY

WEAPONS:

 7 cm Model 38 Field Gun
  7 cm Model 41 Cavalry Gun
  7 cm Modified Model 38 Field Gun
  7 cm Model 95 Field Gun
  7 cm Model 90 Field Gun
  7 cm Model 41 Mountain Gun



7 cm Model 94 Mountain Gun
PROJECTILE:

Caliber:

 75 mm

Kind:

 Shell

Type:

 Incendiary

Weight:

 12.1 lbs.

(with Fuze)



Color:

Grey

BANDS:

None
CHARGE:

Weight:

 Approx. 1.5 lbs.

Kind:

Solution of white phosphorous and rubber pellets in carbon disulphide

TRACER:

None

FUZES:

Model 88 Instantaneous (Gun Type)

REMARKS:

The model number of this projectile has not been determined.
