TM E9-1901 - Identification of Japanes Shells and Shell Fragments; Location of Enemy Batteries; Part Two - Section IX: Projectile Data and Illustration, 75-A-8 (75 mm HE [Dutch])

TM E9-1901 - IDENTIFICATION OF JAPANESE SHELL AND SHELL FRGAMENTS;
LOCATION OF EMENY BATTERIES

PART TWO - READY REFERENCE SECTION

SECTION IX – PROJECTILE DATA AND ILLUSTRATIONS

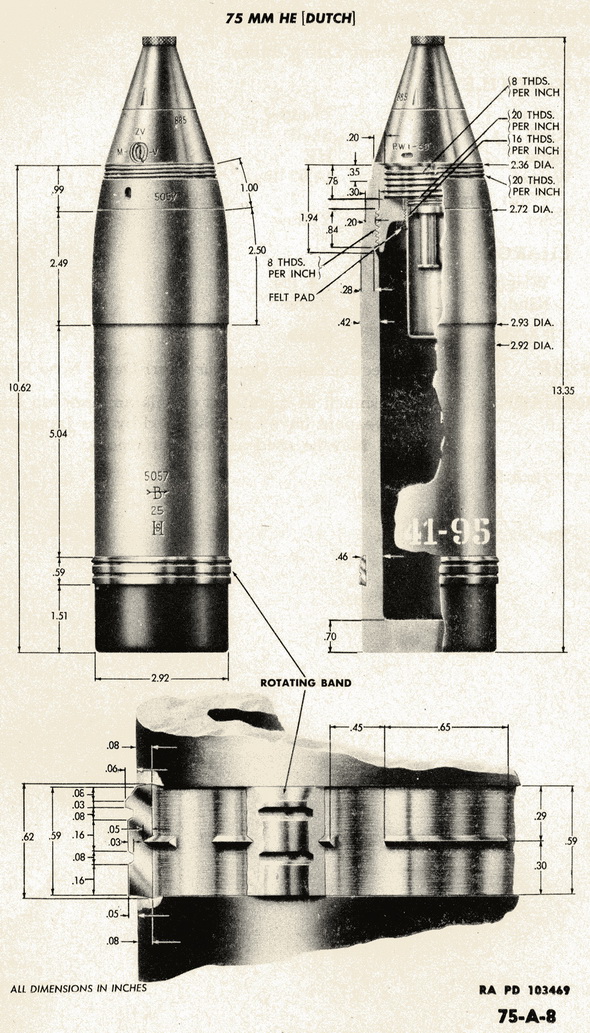

75-A-8

PROJECTILE:	75 mm HE [Dutch]
WEAPONS:	75 mm Dutch Bofors
PROJECTILE:
Caliber:	75 mm
Kind:	Shell
Type:	HE
Weight:	14.67 lbs.
(with Fuze)
Color:	Yellow
BANDS:
CHARGE:
Weight:	1.4 lbs.
Kind:	Picric
TRACER:	None
FUZES:	Selective Super Quick or Short Delay Nose Fuze
REMARKS:	Inasmuch as quantities of this ammunition and weapons have been captured by the Japanese, it may be used against our troops.
