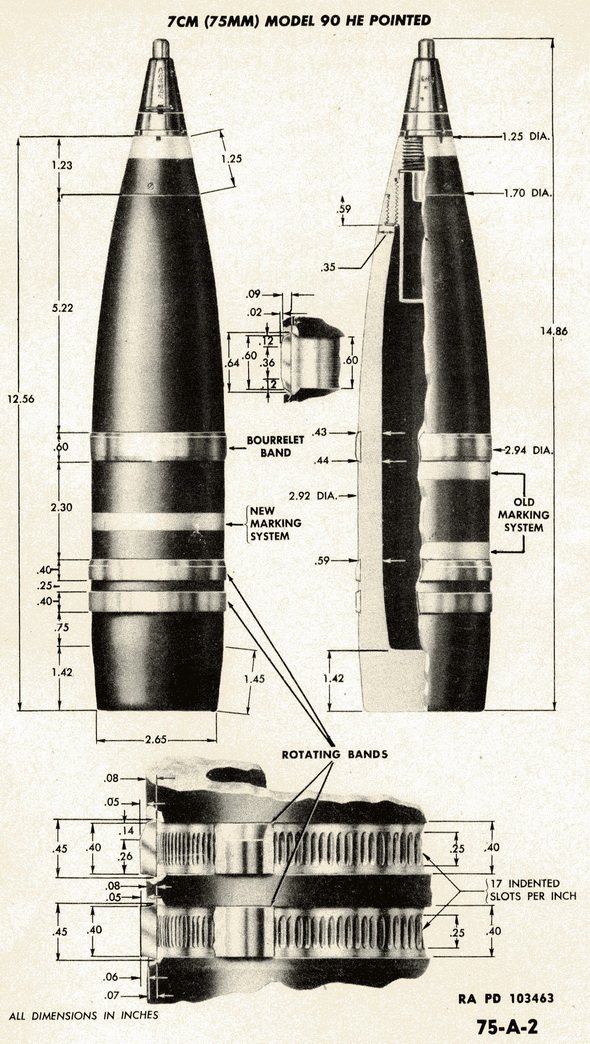

PROJECTILE:

7 cm (70 mm) MODEL 90 HE POINTED
WEAPONS: 7 cm Model 90 Field Gun



7 cm Model 88 Field AA Gun (Special)
PROJECTILE:

Caliber:

 75 mm

Kind:

 Shell

Type:

 HE

Weight:

 14.0 lbs.

(with Fuze)



Color:

Black

BANDS:

One yellow or one yellow and one white
CHARGE:

Weight:

 1.19 lbs.

Kind:

TNT has been found

TRACER:

None

FUZES:

Model 88 Instantaneous (Gun Type) Nose Fuze



Model 88 Short Delay (Gun Type) Nose Fuze

REMARKS:

 This projectile has two rotating bands and a bourrelet band.
