TM E9-1901 - Identification of Japanes Shells and Shell Fragments; Location of Enemy Batteries; Part Two - Section IX: Projectile Data and Illustration, 70-A-1 (7 cm Model 92 HE)

TM E9-1901 - IDENTIFICATION OF JAPANESE SHELL AND SHELL FRGAMENTS;
LOCATION OF EMENY BATTERIES

PART TWO - READY REFERENCE SECTION

SECTION IX – PROJECTILE DATA AND ILLUSTRATIONS

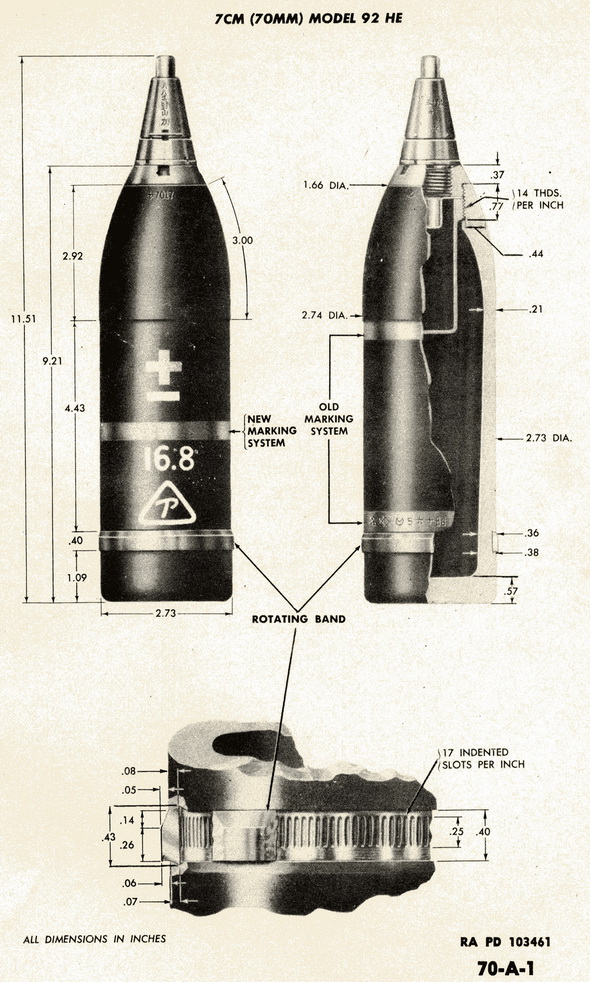

70-A-1

PROJECTILE:	7 cm (70 mm) MODEL 92 HE
WEAPONS:	7 cm Model 92 Howitzer
	7 cm Model 94 Tank Gun
PROJECTILE:
Caliber:	70 mm
Kind:	Shell
Type:	HE
Weight:	8.4 bs.
(with Fuze)
Color:	Black
BANDS:	One yellow or one yellow and one white
CHARGE:
Weight:	1.30 lbs.
Kind:	TNT has been found
TRACER:	None
FUZES:	Model 88 Instantaneous (Howitzer-Mortar Type) Nose Fuze
	Modell 88 Short Delay (Howitzer-Mortar Type) Nose Fuze
	Model 88 Short Delay (Gun Type) Nose Fuze
REMARKS:	Captured docutments indiacte that the Gun Type Fuze is used when this projectile is fired from the tank gun and that the Howitzer Mortar Type Fuze is used when this projectile is fired from the howitzer.
