TM E9-1901 - IDENTIFICATION OF JAPANESE SHELL AND SHELL FRGAMENTS;
LOCATION OF EMENY BATTERIES

PART TWO - READY REFERENCE SECTION
SECTION VIII - ILLUSTRATION OF FRAGMENTS OF ROTATING
BAND SEATS (10 SEATS), 70-A-1 TO 200-R-1

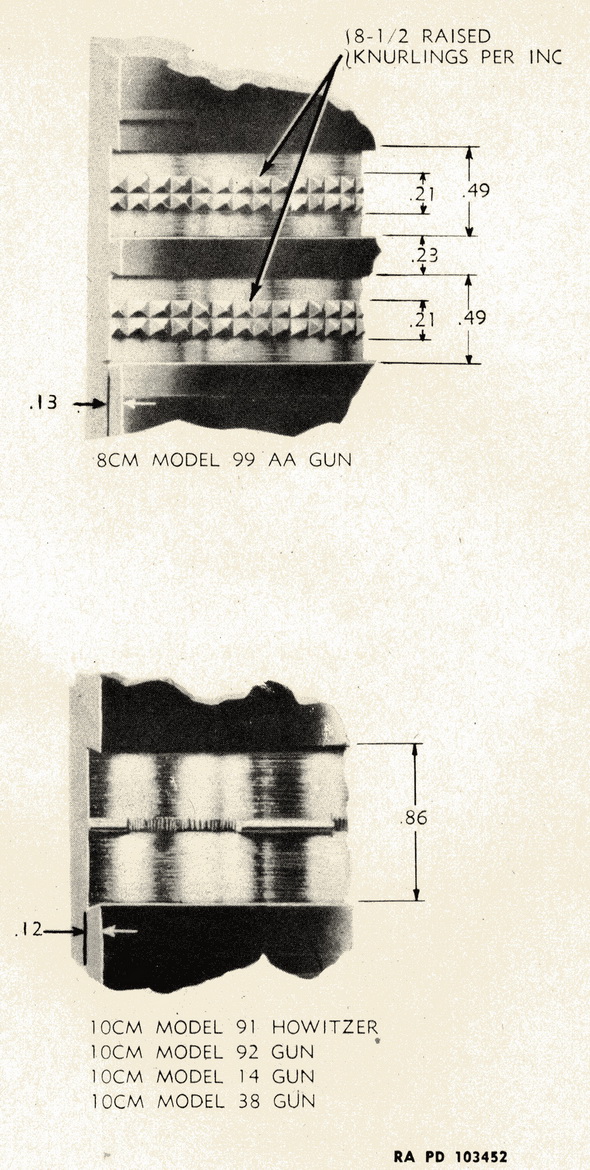

Figure 17 – Rotating Band Seats – Details (Actual Size)
