| USSR – BOMBS AND FUZES |
| BOMBS |
| GENERAL PURPOSE |
| FAB-1000 (welded) |
| TYPE |
G.P., 2200 lb (welded) |
| NOSE FUZE | |
| TAIL FUZE | |
| TOTAL LENGTH (in.) |
140.2 |
| BODY LENGTH (in.) |
92.3 |
| MAXIMUM DIAMETER (in.) |
19.6 |
| WALL THICKNESS (in.) |
.51 |
| TOTAL WEIGHT |
2277 lbs. |
| CHARGE/WEIGHT RATIO |
46% |
| MAIN CHARGE (TYPE & WEIGHT) |
TNT – 1047 lbs. |
| SUSPENSION |
Two suspension bands |
| COLOR MARKINGS |
Grey overall |
| BODY CONSTRUCTION |
The body is formed of a heavy, ogival, steel nose sec-tion, a cylindrical midsection, and a conical after sec-tion. The nose section is riveted and welded to the mid-section, which, in turn, is welded to the after section. The nose and base sections both contain fuze adapters. |
| TAIL CONSTRUCTION |
The tail unit consists of four (4) fins welded to the coni-cal base section of the bomb body. Double sets of struts are welded between the fins for additional rigidity. |
|
REMARKS – The purpose of the extra lug or ring on the tail cone is not known. There are references to a FAB-2000, and FAB-5000, but no information is available on them. |
|

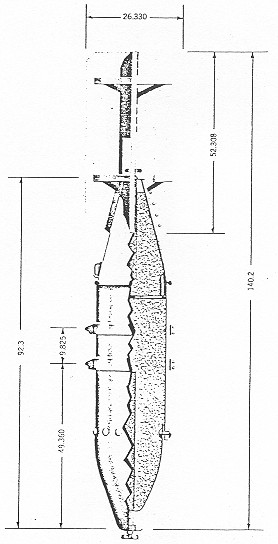

Figure 34 – FAB-1000 (WELDED) GENERAL PURPOSE BOMB |
|
|
 |
