| USSR – BOMBS AND FUZES |
| BOMBS |
| INCENDIARY |
| FAB-100 ZE |
| TYPE |
Special incendiary |
| NOSE FUZE | |
| TAIL FUZE | |
| TOTAL LENGTH (in.) |
42.5 |
| BODY LENGTH (in.) |
–– |
| MAXIMUM DIAMETER (in.) |
10.8 |
| WALL THICKNESS (in.) |
–– |
| TOTAL WEIGHT |
232 lbs. |
| CHARGE/WEIGHT RATIO |
60.3% |
| MAIN CHARGE (TYPE & WEIGHT) |
10 ZAB-2.5 thermite incendiary bombs, less tails and fu-zes, and 29.5 lbs. of explosive filler. |
| SUSPENSION |
Single suspension band |
| COLOR MARKINGS |
Nose band – Red |
| BODY CONSTRUCTION |
The bomb body is a FAB-100 case filled with an explosi-ve incendiary powder, and 8 to 10 small incendiary bombs, ZAB-2.5T without tail units or fuzes. Each small bomb is wrapped in paper and the entire band is cover-ed with a paper disc. |
| TAIL CONSTRUCTION |
Normal for FAB-100. |
|
REMARKS – This bomb can be distinguished from the FAB-100 only by the red body band. The explosive filling detonates upon initiation by the APUV fuze. The small incendi-ary bombs contain a thermite charge, which is ignited by an ingnition train located in the fuze pocker. The individual ignition trains are initiated by the detonation of the main filler, which also scatters the small bombs. |
|

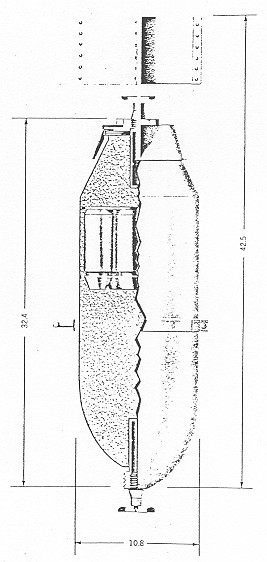

Figure 43 – FAB-100 ZE SPECIAL INCENDIARY BOMB |
|
|
 |
