ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
Chapter 8 |
FRENCH BOMBS |
Smoke Bomb |
Data |
Over-all length |
9.45 in. |
Body length |
Unknown |
Body diameter |
2.75 in. |
Tail length |
4.25 in. |
Tail width |
3.15 in. |
Filling |
Titanium Tetrachloride |
Bottle content |
100 cc. |
Fuzing | |
None |
Description |
The casing is sheet aluminum, with the head pressed separately and soldered in several places to the body. A glass container fits within the casing, protected from breakage by cork at the tail, felt washers along the side of the casing, and a collar supported on a helical spring at the nose. A U-shaped safety pin holds the collar in position. On release, the safety pin is pulled, freeing the bottle in the case. On impact, the bottle moves for-wards against a spring onto four cutters in the nose of the body. |
Color and Markings |
Body and tail - green |
Nose - black |

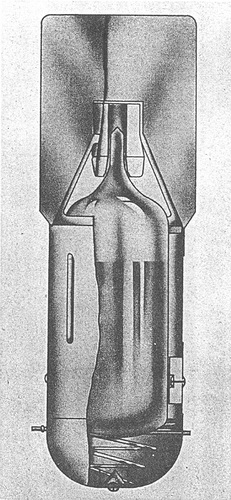

Figure 261 |
|
