| ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
| Chapter 8 |
| FRENCH BOMBS |
| 100-kg and 200-kg G.P.-H.E. |
| Data |
| 100-kg | 200-kg | |
|
Over-all length |
56.0 in. | 62.0 in. |
|
Body length |
Unknown | Unknown |
|
Body diameter |
10.8 in. | 14.5 in. |
|
Wall thickness |
0.44 in. | 0.44 in. |
|
Tail length |
18.9 in. | 27.25 in. |
|
Tail width |
10.2 in. | 14.5 in. |
|
Type of filling |
MDn or DD |
|
|
Weight of filling |
258.0 lbs. | 503.0 lbs. |
| Fuzing | ||
|
Nose |
A modified, R.S.A. 30/45, Model 1930 | |
|
Tail |
3B15 (100 kg only) Sch.R. Model 1938 | |
| Description |
|
These bombs have a forged steel case. The tail assembly consists of four vanes atta-ched to the tail cone and reinforced by struts made of strip steel. |
| Color and Markings |
|
Over-all - yellow |
|
Painted on the bomb case - Type of filling, source, etc. and "F de Culot" if tail-fuzed only. |
|

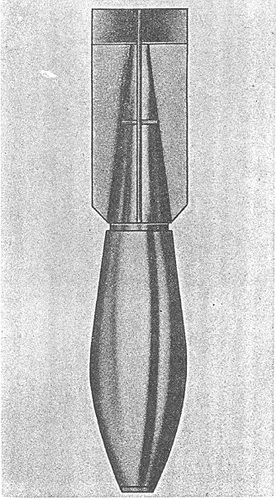

Figure 253 |
|
|
 |
