ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
Chapter 4 |
ITALIAN PROJECTILE FUZES |
Base Fuze for 47/32 A.P. |
Data |
Over-all length |
3 in. (approx.) |
Maximum diameter |
1.21 in. |
Thread diameter |
1.21 in. |
Description |
This fuze has a brass body. The detonator holder is held away from the firing pin by a creep spring and a split brass ring. This ring is split throughout its entrie length so as to permit expansion during setback. A brass nose plug screws into the top of the fuze body and holds the firing pin in position. This plug contains a flash hole filled with black powder to act as a delay. |
The booster fits over the delay pellet and is secured to the fuze by the shoulder on the nose plug. |
On setback, the split arming ring sets back over the detonator holder and leaves the de-tonator holder held off the firing pin by the creep spring. On impact, the detonator over-comes the resistance of the spring by its momentum and hits the firing pin. The flash produced by the detonator passes through the flash-holes in the firing pin and then igni-tes the delay, which in turn sets off the booster. |

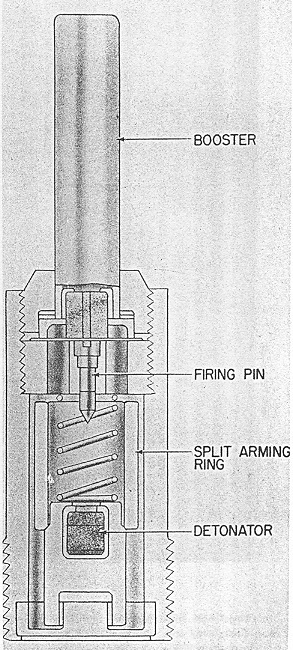

Figure 224 |
|
