| ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
| Chapter 3 |
| ITALIAN PROJECTILES AND CASES |
| 152/37-mm Gun Cartridge Case |
| Data |
|
Over-all length |
767 mm |
|
Over-all diameter at mouth |
Unknown |
|
Width of rim |
Unknown |
|
Diameter at rim |
180 mm |
|
Weight of empty case |
9.720 kg |
| Igniter | |
|
50 grams black powder |
|
| Primer | |
|
Percussion Primer M35 |
|
| Propellant | |
|
Lightest loading |
7.2 kg Ballistite - 42% Nitroglycerine (3.5 x 35 x 35) |
|
2nd lightest loading |
9.4 kg Ballitstite - 42% Nitroglycerine (3.5 x 35 x 35) |
| Remarks |
| The charge of the propellant varies with the type of projectile used. |
|

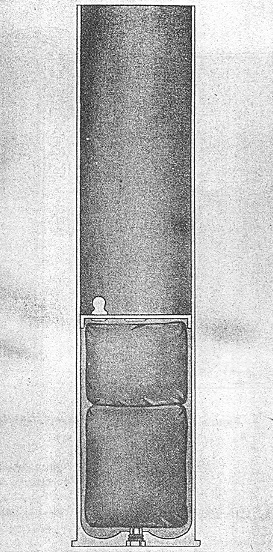

Figure 195 |
|
|
 |
