| ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
| Chapter 3 |
| ITALIAN PROJECTILES AND CASES |
| 305-mm H.E. (Short) |
| Data |
|
Gun used in |
305/8-mm Field Howitzer |
|
Fuzing |
Base Fuze M09 |
|
Over-all length |
946 mm |
|
Diameter at base |
303 mm |
|
Distance base to band |
24 mm |
|
Widht of band |
57.5 mm |
|
Diameter at bourrelet |
304.4 mm |
|
Type of filling |
TNT |
|
Weight of filling |
32 kg |
|
Weight of loaded projectile |
287 kg |
| Remarks |
| The projectile is similar to 305-mm H.E. (Long). |
|

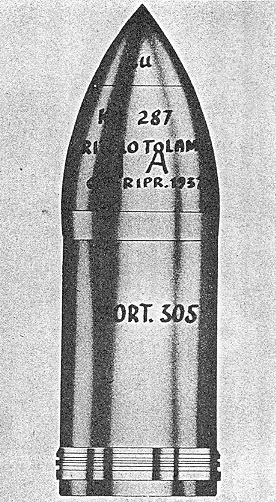

Figure 174 |
|
|
 |
