| ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
| Chapter 3 |
| ITALIAN PROJECTILES AND CASES |
| 149/12-mm H.E. |
| Data |
|
Guns used in |
149/12-mm Heavy Field Howitzer 149/13-mm Heavy Field Howitzer |
|
Fuzing |
Nose Percussion Fuze M10 or M17 |
|
Over-all length |
|
|
With fuze |
677.3 mm |
|
Without fuze |
659 mm |
|
Diameter at base |
147.6 mm |
|
Distance base to band |
38 mm |
|
Width of band |
15 mm |
|
Diameter at bourrelet |
148.50 mm |
|
Type of filling |
TNT or Pertite |
|
Weight of filling |
7.525 kg |
|
Weight of loaded projectile |
41.11 kg |
| Remarks |
|
The projectile for the 149/13-mm gun differs slightly since the rotating band is 152 mm instead of 154 mm for the 149/12-mm gun. |
|

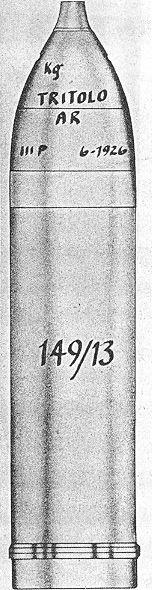

Figure 151 |
|
|
 |
