| ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
| Chapter 3 |
| ITALIAN PROJECTILES AND CASES |
| 100-mm H.E. |
| Data |
|
Gun used in |
100/17-mm Light Field Gun |
|
Fuzing |
Nose Percussion Fuze M10 or (Guerritore I. M35, I. M38, or I. M40) |
| Over-all length | |
|
With fuze |
386 mm |
|
Without fuze |
372 mm |
|
Diameter at base |
99 mm |
|
Distance base to band |
15 mm |
|
Width of band |
13 mm |
|
Diameter at bourrelet |
99.7 mm |
|
Type of filling |
TNT |
|
Weight of filling |
1.285 kg |
|
Weight of loaded projectile |
12.7 kg |
|
Booster used |
No. 3 M38 |
|

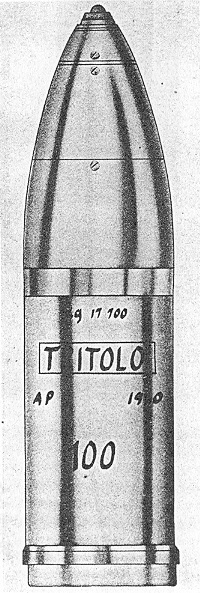

Figure 130 |
|
|
 |
