| ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
| Chapter 3 |
| ITALIAN PROJECTILES AND CASES |
| 90-mm A.A. |
| Data |
|
Gun used in |
|
|
Fixed |
90/53-mm Antiaircraft Gun |
|
Fuzing |
Nose Time Fuze M41 or M.T. 36 |
| Nose Fuze I.O. M40 p.c. | |
| Nose Fuze R40 m.c. | |
|
Over-all length without fuze |
309 mm |
|
Diameter at base |
Unknown |
|
Distance base to top band |
97 mm |
|
Width of band |
Unknown |
|
Diameter at bourrelet |
89.7 mm |
|
Type of filling |
TNT |
|
Weight of filling |
1 kg |
|
Weight of loaded projectile |
10.10 kg to 10.30 kg |
|
Length of complete round |
887 mm |
|
Weight of complete round |
17.050 kg to 17.913 kg |
|
Propellant charge |
1.465 kg to 2.650 kg |
| Remarks |
|
The weight and length of rounds depend on fuzing. The projectile has a screwed-in base plate and two copper driving bands; one band is covered by the cartridge case. |
|

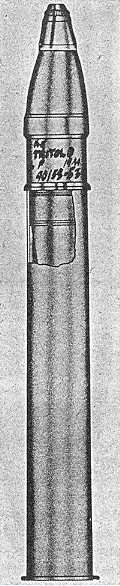

Figure 128 |
|
|
 |
