| ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
| Chapter 3 |
| ITALIAN PROJECTILES AND CASES |
| 77-mm A.A. |
| Data |
|
Gun used in |
|
|
Fixed |
77/28-mm Antiaircraft Gun |
|
Fuzing |
Nose Time Fuze M06/17 |
|
Over-all length |
Unknown |
|
Diameter at base |
Unknown |
|
Distance base to band |
Unknown |
|
Width of band |
8.3 mm |
|
Diameter at bourrelet |
76.30 mm |
|
Type of filling |
TNT |
|
Weight of filling |
0.220 kg |
|
Weight of loaded projectile |
5.921 kg |
|
Length of complete round |
492.5 mm |
|
Weight of complete round |
8.00 kg |
|
|
R.C. 7.600 kg |
|
Propellant charge |
|
|
Full |
0.544 kg C2 or C.G. 13 |
|
Reduced |
0.150 kg Ballistite |
|

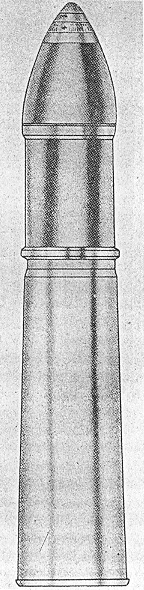

Figure 126 |
|
|
 |
