| ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
| Chapter 3 |
| ITALIAN PROJECTILES AND CASES |
| 77-mm H.E. (Short) |
| Data |
|
Gun used in |
77/28-mm Field Gun |
|
Fuzing |
Nose Percussion Fuze
M10, I. M35 p.c., I. M38
p.c., or M (Guerritore) |
|
Over-all length |
|
|
With fuze |
261 mm |
|
Without fuze |
247 mm |
|
Diameter at base |
75.8 mm |
|
Distance base to band |
49 mm |
|
Width of band |
8 mm |
|
Diameter at bourrelet |
76.3 mm |
|
Type of filling |
Porbably TNT |
|
Weight of filling |
0.58 kg |
|
Weight of loaded projectile |
4.68 kg |
|

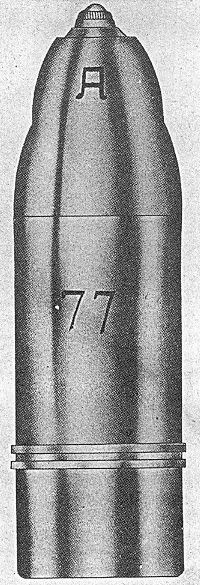

Figure 124 |
|
|
 |
