| ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
| Chapter 3 |
| ITALIAN PROJECTILES AND CASES |
| 76/40-45-mm H.E. |
76/40-45-mm H.E. |
| Data |
|
Guns used in |
|
|
Fixed |
76/40-mm Anitaircraft Gun |
| 76/45-mm Antiaircraft Gun | |
|
Fuzing |
Nose Time Fuze M900/34 |
|
Over-all length |
|
|
With nose |
309 mm |
|
Diameter at base |
75.4 mm |
|
Distance base to band |
Unknown |
|
Diameter at bourrelet |
75.74 mm |
|
Type of filling |
TNT |
|
Weight of filling |
0.50 kg |
|
Weight of loaded projectile |
6.050 kg |
|
Weight of complete round |
|
|
76/40-mm |
R.C. 9.115 kg |
| 9.635 kg | |
|
76/45-mm |
R.C. Unknown |
| 10.328 kg | |
|
Propellant charge |
|
|
76/40 - Full charge |
0.970 kg Ballistite |
|
76/40 - Reduced charge |
0.284 kg |
|
76/45 - Full charge |
1.620 kg |
|
76/45 - Reduced charge |
0.332 kg Ballistite |
|

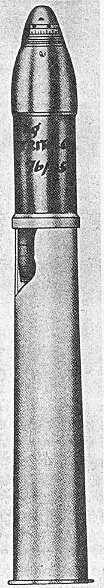

Figure 122 |
|
|
 |
