| ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
| Chapter 3 |
| ITALIAN PROJECTILES AND CASES |
| 75/27-mm H.E. M32 |
| Data |
|
Guns used in |
|
| Fixed | 75/18-mm Self-Propelled Assault Gun |
| Semifixed | 75/13-mm Mountain Gun |
|
Fuzing |
Nose Percussion Fuze M10 or I.O.M40 p.c. |
|
Over-all length |
|
| With fuze | 319 mm |
| Without fuze | 305 mm |
|
Diameter at base |
Unknown |
|
Distance base to band |
46 mm |
|
Width of band |
9.7 mm |
|
Diameter at bourrelet |
74.74 mm |
|
Type of filling |
TNT |
|
Weight of filling |
0.60 kg |
|
Weight of loaded projectile |
6.35 kg |
|
Total length of round |
591.5 mm |
|
Weight of complete round |
7.725 kg |
|
Weight of propellant charge |
0.420 kg Ballistite |
|

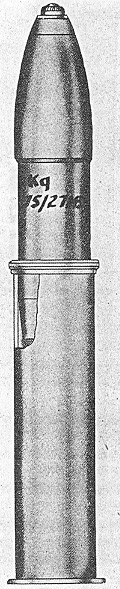

Figure 108 |
|
|
 |
