| ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
| Chapter 3 |
| ITALIAN PROJECTILES AND CASES |
| 47/32-mm E.P. (Hollow Charge) |
| Data |
|
Gun used in |
47/32-mm Anti-tank Gun |
|
Fuzing |
Base Fuze E.P. M41 |
|
Over-all length |
251.5 mm |
|
Diameter at base |
Unknown |
|
Distance base to band |
Unknown |
|
Widht of band |
Unknown |
|
Diameter at bourrelet |
Unknown |
|
Type of filling |
Tritolite (50% TNT and 50% cyclonite) |
|
Weight of filling |
Unknown |
|
Weight of loaded projectile |
1.23 kg |
| Remarks |
|
This projectile is used in a fixed round. The propellant charge used is smaller than the other 47/32-mm shells, since a larger portion of the projectile is located in the case. |
|

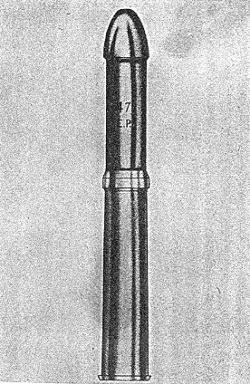

Figure 96 |
|
|
 |
