| ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
| Chapter 3 |
| ITALIAN PROJECTILES AND CASES |
| 47/32-mm A.P. M35 (Without Cap) |
| Data |
|
Gun used in |
47/32-mm Anti-tank Gun |
|
Fuzing |
Base Fuze M09 |
|
Over-all length (with tracer) |
155 mm |
|
Diameter at base |
Unknown |
|
Distance at base to band |
50 mm |
|
Widht of band |
8 mm |
|
Diameter at bourrelet |
Unknown |
|
Type of filling |
TNT |
|
Weight of filling |
0.030 kg |
|
Weight of loaded projectile |
1.5 kg |
|
Total length of round |
299.7 mm |
|
Weight of complete round |
2.9 kg |
| Remarks |
| A tracer element is fixed to the base of the projectile. |
|

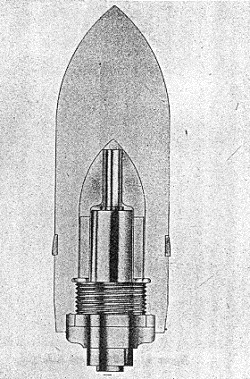

Figure 94 |
|
|
 |
