| ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
| Chapter 3 |
| ITALIAN PROJECTILES AND CASES |
| 8-mm A.P. |
| Data |
|
Gun used in |
8-mm Machine Gun |
|
Over-all length of round |
80.3 mm |
|
Weight of complete round |
29.34 grams |
|
Length of bullet |
36.9 mm |
|
Weight of bullet |
12.57 grams |
|
Length of cartridge case |
59 mm |
|
Weight of propellant |
3.08 grams |
| Remarks |
|
The bullet is made up of a plated steel jacket enclosing a hard steel core with a soft lead point. |
|

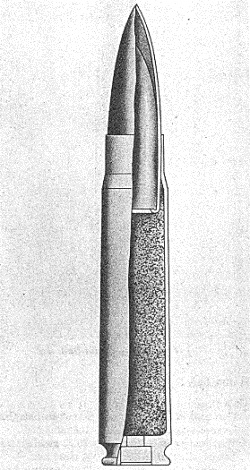

Figure 82 |
|
|
 |
