| ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
| Chapter 1 |
| ITALIAN BOMBS |
| 20-kg (CV) Antiaircraft Bomb |
| Data |
|
Over-all length |
30.7 in. |
|
Body length |
15.5 in. |
|
Body diameter |
5.5 in. |
|
Wall thickness |
1.1 in. |
|
Tail length |
18.0 in. |
|
Tail width |
5.7 in. |
|
Type of filling |
Unknown |
|
Weight of filling |
Unknown |
|
Total weight |
Unknown |
| Fuzing |
|
Nose fuze - Type I |
| Description |
|
The bomb case is loaded with steel pellets embedded in concrete. No further description is availabe. |
|

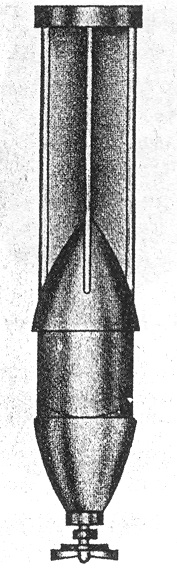

Figure 34 |
|
|
 |
