Chapter 5 - Section 4
NAVY PROJECTILE FUZES
40-mm Base Fuze
Use: 40-mm A.P.-H.E. projectiles.
Over-all length (with gaine): 2 5/32 inches.
Over-all length (without gaine): 1 1/2 inches.
Maximum diameter: 1 7/32 inches.
Threaded length: 7/8 inch L.H.

Construction: A cylindrical steel piece is threaded externally and centrally drilled to pro-vide a recess to house and guide the striker, inertia weight, and creep spring. It is threaded internally on the forward end to take the gaine. The striker is housed in and secured to the inertia weight by a copper shear pin. The inertia weight is a steel cylinder which closely fits the inner opening of the fuze body and is held in the rear-most position by a creep spring resting between the explosive-train carrier and an annular groove in the forward end of the inertia weight.

Operation: On firing, set-back causes the inertia weight to move downward, breaking the shear wire and exposing the striker. Upon impact, the striker and collar move against the creep spring and the firing pin pierces the primer.

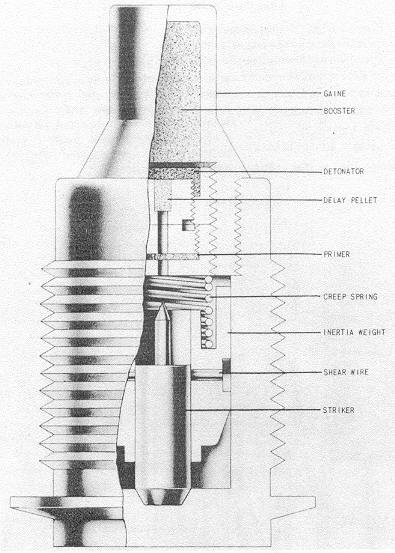

Figure 447 – 40-mm Base Fuze.
