Chapter 5 - Section 1
NAVY PROJECTILES
(Ordinary Mod 1) 14-cm (140-mm) (5.5-Inch) Common Capped
Weight of filled projectile (with fuze): 84.94 pounds.
Weight of empty projectile: 80.14 pounds.

Weight stamped on rotating band (sample): 35.800 kg. (varies with individual projecti-les).

Length of projectile: 21.63 inches.
Diameter at bourrelet: 5.49 inches (139.5 mm).
Distance from base to rotating band: 0.593 inch.
Width of rotating band:
Forward: 1.11 inches.
Space: 0.38 inches.
Aft: 1.09 inches.
Radius of ogive: Not determined.
Filling: Cast picric acid (shimose): 4.80 pounds.

The charge consists of a single block of explosive cast and sealed in a waxed-paper con-tainer, encased in a heavy cotton-flannel bag and sealed in the projectile with paraffin.

Fuzing: Type 13th year Mk 1 Mod 1 base detonating.
Weapon in which used: Type 3d year 14-cm/50 gun.

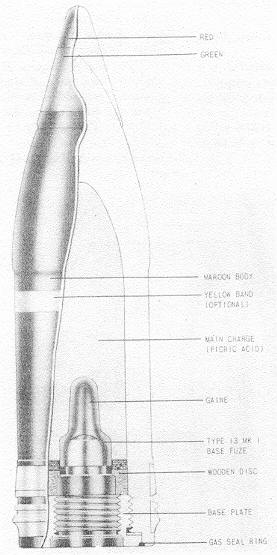

Figure 403 – 14-cm (Ordinary Mod 1) Common Capped.
