(Type 0 Ordinary) 14-cm (140-mm) (5.5-Inch) High-Explosive Projectile
Weight of filled projectile (without fuze): 88.22 inches.
Weight of empty projectile: 81.62 pounds.

Weight stamped on rotating band (sample): 34.100 kg. (varies with individual projecti-les).

Length of projectile (without fuze): 21.55 inches.
Diameter at bourrelet: 5.49 inches (139.5 mm).
Distance from base to rotating band: 0.59 inch.
Width of rotating band:
Forward: 1.11 inches.
Space: 0.38 inch.
Aft: 1.09 inches.
Radius of ogive: No data.
Filling:Cast picric acid (shimose): 6.60 pounds.

The charge consists of a single block of explosive cast and sealed in a waxed-paper con-tainer, encased in a heavy cotton-flannel bag and sealed in the projectile with paraffin.

Fuzing:
Type 91 mechanical time fuze.
Type 88 point detonating fuze.
Weapon in which used: Type 3d year. 14-cm/50 gun (low angle).

Remarks: This projectile permits the 14-cm/50 gun to be used for antiair-craft fire, but the angle of elevation of the weapon definitely limits its effectiveness.

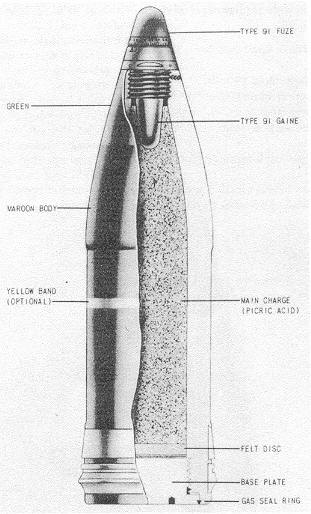

Figure 401 – 14-cm (Ordinary Type 0) High-Explosive.
