Chapter 5 - Section 1 |
NAVY PROJECTILES |
14-cm (140-mm) (5.5-Inch) Propellant and Tanks |
Powder tanks: |
For storage purposes, the propellant charges are sealed in waterproof containers comm-only known as "powder tanks". Two types of the tanks have been recovered: one is a heavy tank (26.4 pounds) of cast steel and bronze; the other is sheet steel and alumi-num and weighs 15.4 pounds. Both are well lacquered inside and have the same internal dimensions, 6.2 inches by 33.4 inches. |
Propellant: 37 C: 24.51 pounds (11.14 kg.). |
Unperforated cylindrical sticks approximately 3.7 mm (0.15 inch) by 28 inches graphited double-base powder. |
The propellant sticks are enclosed in a bag of heavy brownish silk. |
An ignition pad containing 17.2 grams of granular black powder is laced onto the base of the charge. |
Primer: Mk 2 lock percussion primer. |
Weapon in which used: Type 3d year 14-cm/50 gun (low angle). |
This is a pedestal-mounted deck gun employing bag ammunition. It is commonly found in shore emplacements for coastal defense and limited antiaircraft use. Strongly resembling the type 3d year 12-cm/45 gun in design, this weapon also has three recoil cylinders all mounted above the tube and an interrupted thread breech block hinged on the right. This gun has been found both with a splinter shield attached, and without. |

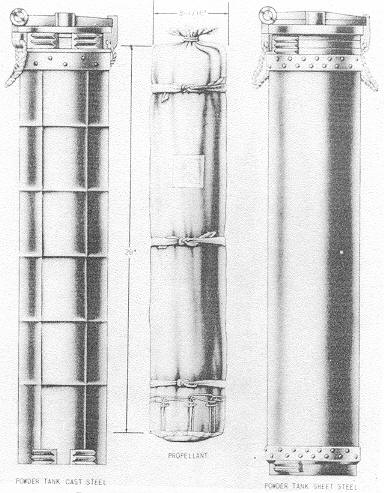

Figure 399 – 14-cm Propellant and Tanks. |
|
![]() ![]() ![]() ![]() |
