Chapter 5 - Section 1
NAVY PROJECTILES
(Type 3 Ordinary) 12.7-cm (127-mm) (5-Inch) Incendiary Shrapnel
Assembled round:
Weight of complete round: 78.36 pounds.
Length of complete round (without fuze): 36.43 inches.
Projectile:
Weight of filled projectile (without fuze): 53.21 pounds.
Weight of empty projectile: No data.

Weight stamped on rotating band (sample): 17.17 kg. (varies with individual projectiles).

Dimensions:
Length of projectile (without fuze): 14.8 inches.
Diameter at bourrelet: 4.97 inches (126.3 mm).
Distance from base to rotating band: 1.25 inches.
Width of rotating band: 2.0 inches.
Radius of ogive: 6 cal.
Filling:
Cast picric acid (shimose): 162 grams.
Tetryl: 2.3 grams.
Lead Azide: 0.13 grams.
Black powder: 35 grams.

Incendiary charge (43 steel pellets 50 mm in length and 20 mm in diameter) filled with a dry incendiary mix of the following composition:

Magnesium: 54 percent.
Barium dioxide: 26 percent.
Rubber: 15 percent.
Iron oxide: 1.5 percent.
Sulphur: 3 percent.
Fuzing: Type 91 mechanical time fuze.
Weapon in which used: Type 89 12.7-cm/40 high-angle gun.

Remarks: The black powder charge in the nose ignites the incendiary pellets and flashes down the central tube igniting relay disks and the expelling charge.

The expelling charge ejects the incendiary pellets and ignites a primer in the base section which detonates the gaine and bursting charge.

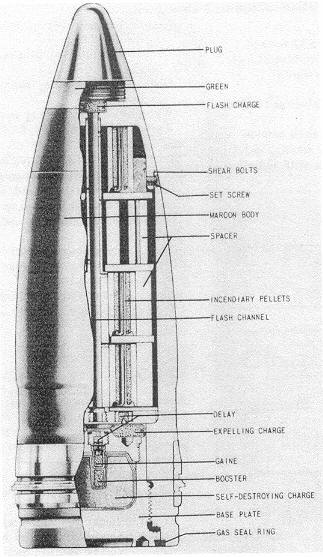

Figure 397 – 12.7-cm Incendiary Shrapnel (Ordinary Type 3).
