NAVY PROJECTILES
8-cm (76.2-mm) (3-Inch) (Ordinary Mk 3 Mod 1) High-Explosive
Assembled Round:
Weight of complete round: 19.25 pounds.
Length of complete round, with type 89 fuze: 28.25 inches.
Projectile:
Weight of filled porjectile (without fuze): 9.5 pounds.
Weight, empty: 8.6 pounds.

Weight stamped on rotating band (sample): 4.865 kg. (varies with individual projectiles).

Dimensions:
Length of projectile (without fuze or adapter): 9.25 inches.
Diameter at bourrelet: 2.97 inches (75.5-mm).
Distance from base to rotating band: 0.75 inch.
Width of rotating band: 1.0 inch.
Radius of ogive: 4 cal.
Filling: Cast picirc acid (shimose): 0.9 pound.

The charge consists of a single block of explosive cast and sealed in a waxed paper con-tainer encased in a heavy cotton flannel bag and sealed in the projectile with paraffin.

Fuzing:
a. Army type 89 powder time fuze (30 seconds).
b. Type 5 yr. point detonating fuze (instantaneous) with adapter.
Weapon in which used:
Type 3-year, 8-cm/40 dual purpose gun.
Type 88 8-cm/40 dual purpose gun.

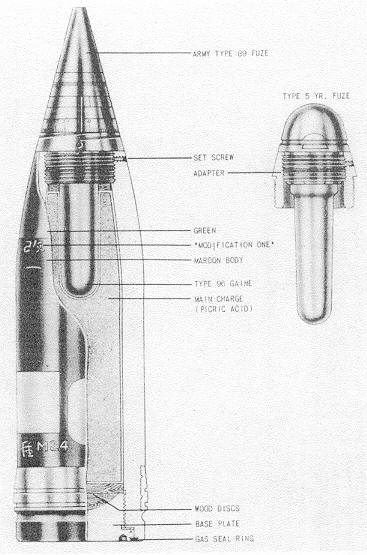

Figure 377 – 8-cm (Ordinary Mk 3 Mod 1) High-Explosive.
