Chapter 5 - Section 1
NAVY PROJECTILES
20-mm Tracer Projectile
Fuze: None.
Weight of projectile: 4.44 ounces.
Length of projectile: 3.23 inches.
Length of complete round: Mk I, 5.66 inches; Mk II, 6.84 inches.
Filling: Tracer mixture.
Weight of filling: 0.31 ounces.
Color and markings: Red over all (modifiactions indicated by white band).

Remarks: The projectile is unfuzed; has a blunt nose and a long cavity containing the tracer element. It is loaded so as to be the first round fired to break the muzzle cover. It is, therefore, often referred to as a "bag-buster".

In addition to the basic Japanese type, Modifiactions II and III exist, as well as a similar round of Swiss make. The weight of tracer constitutes the difference in the Japanese modifiactions.

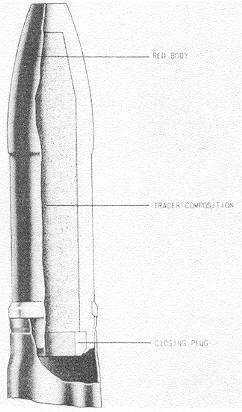

Figure 355 – 20-mm Tracer Projectile.
