NAVY PROJECTILES
13.2 mm Aircraft and Antiaircraft Machine Gun Ammunition

Tracer

A.P.

H.E.I.

Over-all length

5 3/8 inches

5 3/8 inches

5 3/8 inches.

Length of case

3 7/8 inches

3 7/8 inches

3 7/8 inches.

Weight of projectile (empty)

44.8 grams

51.8 grams

44.3 grams.

Construction:

Type

Projectile jacket

Projectile core

Ball

Copper

Lead.

Tracer

Copper

Lead.

A.P.

Copper

Steel.

H.E.I.

Copper

PETN and incendiary composition.

Weapons in which used:
Type 93: A.A.M.G.
Type 3: Fixed/flexible A.C.M.G.
Color and markings:

Type

Color around primer
Ball Black.
Tracer Red.
A.P. White.
H.E.I. Yellow.

Remarks: This ammunition has a rimless brass case. It is very similar in appearance but not interchangeable with U.S. cal. .50.

The standard Navy code for marking small arms ammunition is used.

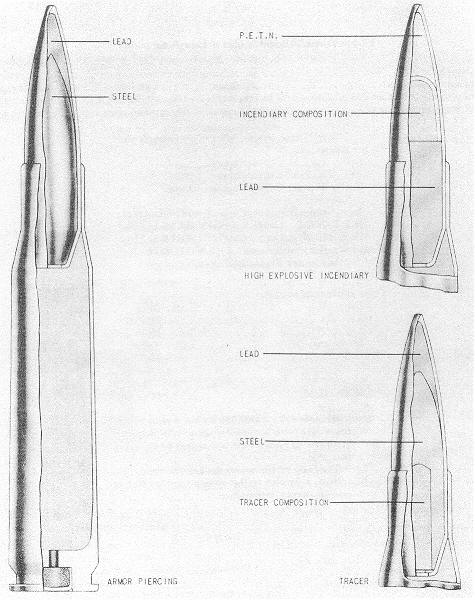

Figure 348 – 13.2-mm Aircraft and Antiaircraft Machine Gun Ammunition.
