Chapter 5 - Section 1
NAVY PROJECTILES
8-cm (76.2-mm) (3-Inch) Shrapnel Projectile
Assembled round:
Weight of complete round (without fuze): 19 pounds.
Length of complete round (without fuze): 23.75 inches.
Projectile:
Weight of filled projectile (without fuze): 10.8 pounds.
Weight of projectile (empty): No data.

Weight stamped on rotating band (sample): 2.86 kg. (Varies with individual projectiles).

Dimensions:
Length of projectile (without fuze): 8.38 inches.
Diameter at bourrelet: 2.97 inches (75.5-mm).
Distance from base to rotating band: 0.75 inch.
Width of rotating band: 1.0 inch.
Radius of ogive: 4 cal.
Filling: Black powder and shrapnel balls.
Fuzing: 30-second time fuze.
Weapons in which used:
Type 3-year 8-cm/40 dual-purpose gun.
Type 88 8-cm/40 dual-purpose gun.
Type 98 8-cm/60 dual-purpose gun.

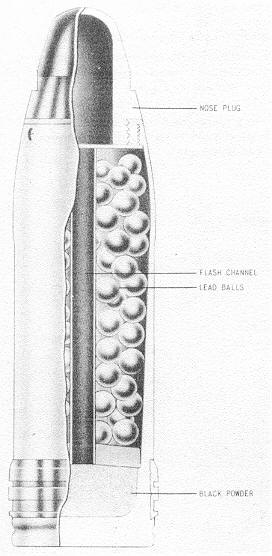

Figure 375 – 8-cm Shrapnel.
