Chapter 5 - Section 1
NAVY PROJECTILES
8-cm (76.2-mm) (3-Inch) Complete Round (Semifixed)
Case:
Length:15.06 inches.
Diameter at base: 4.13 inches.
Material: Brass (recovered); steel (documentary).
Weigth (empty): 4.97 inches.
Propellant:
20 3C (type 89 propellant) 1.98 pounds (0.900 kg.).

Unperforated cylindrical sticks, approximately 2-mm (1/16 - 3/32 inch) by 12.75 inches, amber-colored double-base powder.

The propellant sticks are enclosed in a bag of heavy brownish silk.

Primer: Mk I case percussion primer, Model 4.

Weapon in which used: "AN" (Armstrong) type 8-cm/40 gun (low angle).

Except for minor changes, this is an exact copy of a British naval gun, and guns of both British and Japanese manufacture have been found ashore in Japanese emplacements for coastal defense.

The gun is pedestal-mounted. The breech is closed by a two-step interrupted-thread block.

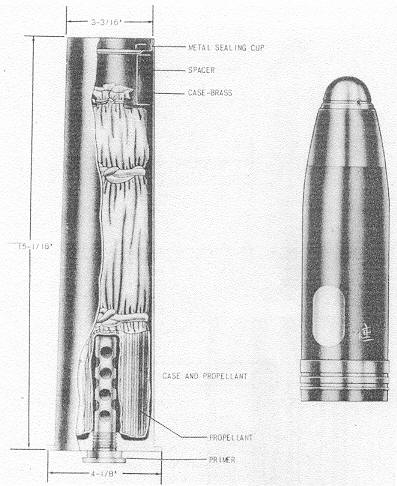

Figure 373 – 8-cm Complete Round (Semifixed).
