Chapter 5 - Section 1
NAVY PROJECTILES
5-cm (47-mm) Complete Round and Projectile
Assembled round:
Weight of complete round: 3.2 pounds.
Length of complete round: 9.25 inches.
Projectile:
Weight of filled projectile (with fuze): 2.4 pounds.
Weight of projectile (empty): 2.1 pounds.
Dimensions:
Length of projectile (without fuze): 5.31 inches.
Diameter at bourrelet: 1.84 inches (46.7-mm).
Distance from base to rotating band: 1.25 inches.
Width of rotating band: 1.69 inches.
Filling: Loose granular black powder: 1.8 ounces. (50 grams).

Fuzing: Hotchkiss patent fuze, screwed (R.H.) into base; a simple setback arming base fuze presumably of British manufacture. The base of the fuze is stamped "Hotchkiss Pa-tent DOC." Weight of fuze, 2 ounces.

Case:
Length: 5.19 inches.
Diameter at base: 2.38 inches.
Material: Brass (recovered); steel (documentary).
Weight (empty): No data.

The case is crimped into a groove in the base of the projectile by several short crimps.

Propellant: 5 C2 (type 2-year propellant) 2.4 ounces (0.067 kg.).
Unperforated Cylindrical sticks, approximately 0.5 mm (1/64 - 1/32 inch) by 3 3/16 inches amber-colored double-base powder.
The propellant sticks are enclosed in a compartemend bag of heavy brownish silk.
Primer: Small flush type (designation unknown).
Weapon in which used: Short 5-cm gun.

This gun, mounted on wooden-spoked wheels as a field piece, corresponds to old U.S. "landing guns" and is probably a copy of an obsolete British gun. The breech block is the vertical sliding type.

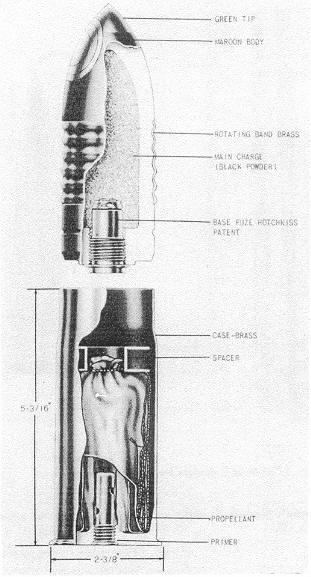

Figure 372 – 5-cm Complete Round and Common Projectile.
