| ARMY MORTARS |
| Type 97 - 150-mm High-Explosive Mortar |
| Weight complete round: 43.5 pounds. |
| Weight main charge: 8.98 pounds. |
| Explosive components: |
|
Main charge: TNT. |
|
Booster: RDX and wax. |
|
Propellant: |
|
Nitrocellulose and graphite: 58.0 percent. |
|
Nitroglycerine: 7.1 percent. |
|
Dinitrotoluene: 25.7 percent. |
|
Diphenylamine: 0.5 percent. |
|
Potassium nitrate: 8.7 percent. |
| Over-all length (without fuze): 23.7 inches. |
| Length fin assembly: 6.7 inches. |
| Maximum diameter at bourrelet: 5.9 inches (150 mm). |
| Maximum diameter tail fins: 5.87 inches. |
|
Color: Black over all with a red nose tip and a yellow band before the bourrelet. |
| Fuzing: Type 100 instantaneous short-delay mortar fuze. |
| Weapon in which used: Type 97 150-mm smooth-bore mortar. |
|
Description: Except for its shorter size, this projectile is similar in construction to the type 96 H.E. long round. |
|

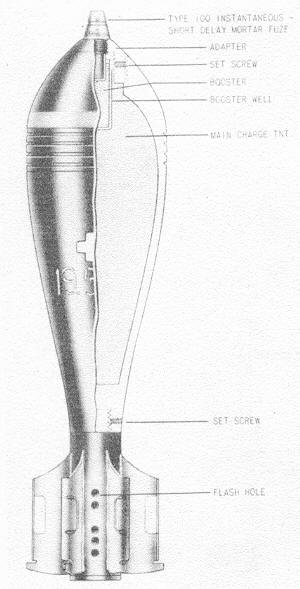

Figure 313 – Type 97 150-mm High-Explosive Mortar. |
|
|
 |
