Chapter 4 – Section 1
ARMY PROJECTILES
Type 95 - 15-cm (155-mm) Armor-Piercing High-Explosive Projectile
Weight of projectile, filled (fuzed): 36.1 kg. (79.5 pounds).
Weight of filling: 2.3 kg. (5 pounds).
Filling: Two preformed blocks of high grade TNT.
Diameter at bourrelet: 150 mm (5 15/16 inches).
Length of projectile (without fuze): 449.3 mm (17 11/16 inches).
Length of protruding from case: 406.4 mm (16 inches).
Width of rotating band: 20.6 mm (13/16 inches).
Fuzing: Type 95 medium howitzer-mortar base fuze.
Weapons in which used:

Type 4-year howitzer: Case A, 10 3/16 inches; Case B, 8 7/8 inches.

Type 38 howitzer: Case, 4 1/4 inches.

Type 96 howitzer: Case, 12 5/8 inches.

Type 45 gun: Case, 48 1/32 inches.

Type 7-year gun: Case, 48 1/32 inches.

Type 90 gun: Case, 48 1/32 inches.

Type 89 gun: Bag charge.

Remarks: When this projectile is used in a howitzer, it has a single rotating band, but when it is used in guns it has a double rotating band.

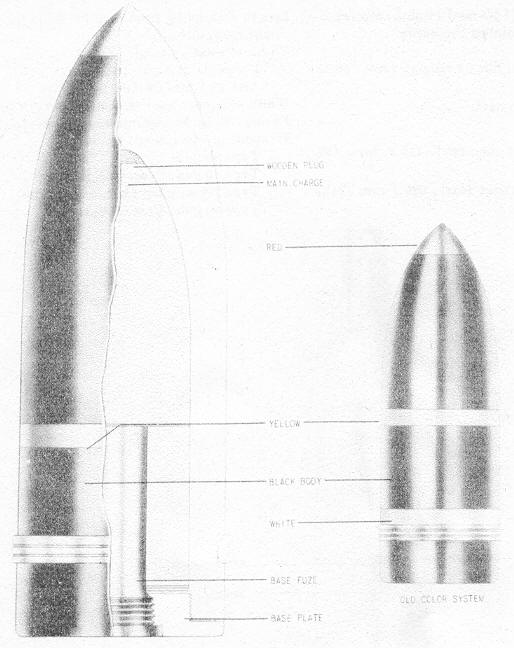

Figure 290 – Type 95 15-cm Armor-Piercing High-Explosive Projectile.
