Type 93 - 15-cm (150-mm) High-Explosive Projectile |
Weight of projectile, filled (without fuze): 40.29 kg. (88.8 pounds). |
Weight of filling: No data. |
Filling: Cast TNT. |
Diameter at copper bourrelet: 149.3 mm (5 7/8 inches). |
Length over all (without fuze): 593.7 mm (23 3/8 inches). |
Length protruding from case (wihout fuze): 544 mm (21 7/8 inches). |
Width of rotating band: |
Forward: 25.4 mm. |
Aft: 19.1 mm. |
Width of copper bourrelet: 31.75 mm. |
Fuzing: Type 90 instantaneous short-delay fuze. |
Weapons in which used: |
Type 89 gun. |
Type 45 gun: Case, 48 1/32 inches. |
Type 7 year gun: Case, 48 1/32 inches. |
Type 90 gun: Case, 48 1/32 inches. |

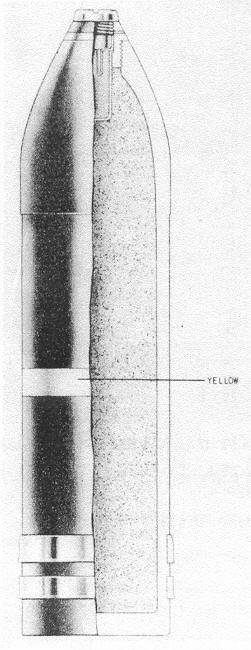

Figure 287 – Type 93 15-cm High-Explosive Long-Pointed Projectile. |
|
![]() ![]() ![]() ![]() ![]() |
