Type 90 - 7-cm (75-mm) Illuminating Projectile
Weight of projectile, filled (fuzed): 5.65 kg. (12.44 pounds).
Weight of illuminating compound: 0.25 kg. (0.55 pound).
Filling:

Expelling charge, black powder.

Illuminating compound, not known ( A common illuminating compound used by the Japa-nese is a mixture of barium nitrate, magnesium and aluminum.)

Diameter at bourrelet: 75.0 mm (minus tol.).
Length over all (without fuze): No data.
Length protruding from case: 210.0 mm (8 1/4 inches).
Width of rotating band: No data.
Fuzing: Type 5th year combination fuze.
Weapons in which used:

Type 41 mountain gun: Case, 7 1/4 inches.

Type 38 field gun group: Case, 11 9/16 inches.

Type 90 field gun: Case, 16 11/16 inches.

Type 94 mountain gun: Case, 11 9/16 inches.

Remarks: 1. Japanese figures state that this illuminating charge burns with an intensity of approximately 90,000 candlepower, for a period of 20 seconds.

2. According to the new marking system, this projectile is painted as follows: Red body with the symbol stenciled near the middle. Under the old marking system, it was pain-ted black over all with the same symbol stenciled on the body.

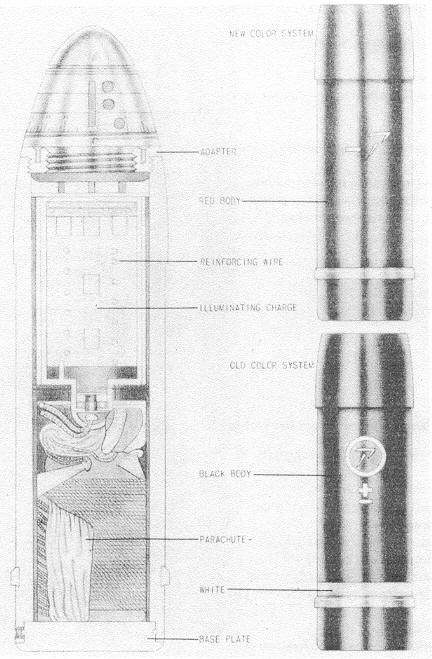

Figure 265 – Type 90 7-cm Illuminating Projectile.
