Type 90 - 7-cm (75-mm) Smoke (W.P.) Projectile
Weight of projectile, filled: 5.72 kg. (12.60 pounds).

Bursting charge: 0.10 kg. (0.22 pounds). "ONA", a 50-50 mixture of picric acid and dini-tronaphthalene in a performed, paper-wrapped block.

Chemical agent: 700 grams. White phosphorus sealed in a soldered brass can which fits into the lacqured cavity below the bursting charge.

Diameter at bourrelet: 75 mm (minus tol.).
Length over all (without fuze): 292 mm (11 1/2 inches).
Length protruding from case (without fuze): 253 mm (10 inches).
Width of rotating band: 10 mm.
Fuzing: Type 88 instantaneous nose fuze (gun type).
Weapons in which used:

Type 41 mountain gun (regimetal gun): Case, 7 1/4 inches.

Type 94 mountain gun: Case, 11 9/16 inches.

Type 38 field gun group: Case, 11 9/16 inches.

Type 90 field gun: Case, 16 11/16 inches.

Screening capacity (Japanese figures):

Height, 20 meters.

Width, 20 meters.

Duration, 1 to 2 minutes.

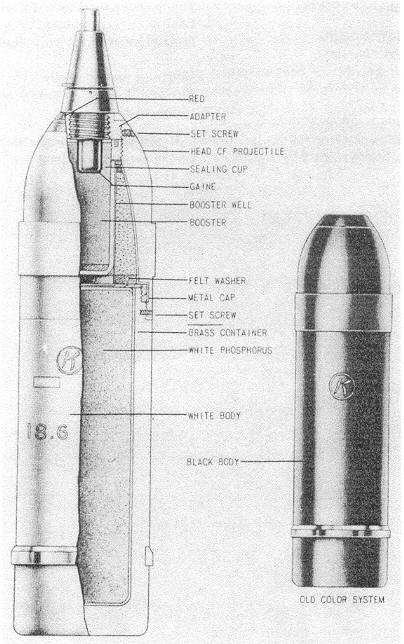

Figure 263 – Type 90 7-cm Smoke (W.P.) Projectile.
