Chapter 4 – Section 1
ARMY PROJECTILES
Type 95 - 7-cm (75-mm) Armor-Piercing High-Explosive Projectile
Weight of projectile, filled (fuzed): 6.21 kg. (13.66 pounds).
Weight of filling: 0.46 kg. (1.01 pounds).
Filling: "ONA" a mixture of picric acid and dinitronaphthalene.
Diameter at bourrelet: 75.0 mm (minus tol.).
Length over all (without fuze): No data.
Length protruding from case: 265.5 mm (10 7/16 inches).
Width of rotating band: No data.
Fuzing: Type 95 small base fuze.
Weapons in which used:

Type 41 mountain gun (regimental gun): Case, 7 1/4 inches.

Type 38 field gun group: Case, 11 9/16 inches.

Type 99 field gun: Case, 16 11/16 inches.

Type 94 mountain gun: Case, 11 9/16 inches.

Type 88 7 cm field A.A. gun (special): Case, 19 9/16 inches.

Penetrating power: When used in the type 41 mountain gun this projectile is designed to penetrate 20 mm of steel plate at a maximum range of 3,000 meters.

Remarks: By design, this projectile is intended for a function intermediate between that of H.E. projectiles and true armor-piercing types. For this reason the Japanese designate it "A.P.H.E." A.P.-H.E. projectiles are painted like the H.E. rather than the A.P. class.

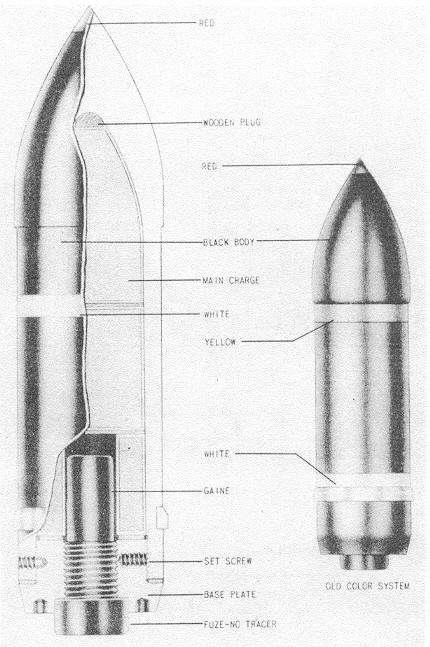

Figure 258 – Type 95 7-cm Armor-Piercing High-Explosive Projectile.
