| Weight of complete round: No data. |
| Weight of projectile fuzed: No data. |
| Weight of filling: No data. |
| Filling: Black powder. |
| Diameter at bourrelet: 70 mm (minus tol.). |
| Length of projectile (without fuze): 187 mm (7 3/8 inches). |
| Length of propellant case: 101 mm (4 inches). |
| Length of assembled round (without fuze): 259 mm (10 3/16 inches). |
| Diameter of base of case: 81 mm (3 3/16 inches). |
| Width of rotating band: 10 mm. |
| Weapons in which used: Type 92 infantery gun (Howitzer). |
| Fuzing: |
|
Type 88 instantaneous nose fuze (howitzer, mortar type). |
|
Type 88 short-delay nose fuze (howitzer, mortar type). |
| Propellant: Refer to the type 92 high-explosive projectile. |
|

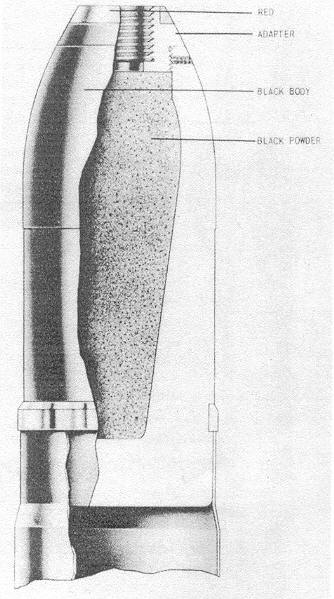

Figure 237 – Type 92 7-cm Substitute Projectile. |
