Type 1 - 47-mm High Explosive Projectile
Weight of complete round: 2.44 kg. (5.4 pounds).
Weight of projectile (without fuze): 1.15 kg. (2.5 pounds).
Weight of filling: 0.087 kg. (0.2 pound).

Filling: Two preformed paper-wrapped blocks taped together and waxed. The forward block consists of two pellets of picric acid – a ring pellet around the gaine and a solid pellet beneath the gaine. The after block is one piece of cast TNT.

Diameter at bourrelet: 47 mm ( minus tol.).
Length of projectile (without fuze): 140 mm (5 1/2 inches).
Length of propellant case: 283 mm (11 1/8 inches).
Length of assembled round (without fuze): 389 mm (15 5/16 inches).
Diameter of base of case: 72 mm (2 13/16 inches).
Weapons in which used:
Type 1 antitank gun.
Type 1 tank gun.
Fuzing: Type 88 Inst. Nose fuze (gun type), type 88 short-delay nose fuze (gun type).
Weight of propellant: 0.398 kg. (0.9 pound).

Propellant: Single perforated cylindrical grains (7/16 inch long, 5/32 inch diameter) of a graphited double-base powder of the following composition:

Nitrocellulose: 60.0 percent.

Nitroglycerine: 34.5 percent.

Ethyl centralite: 3.0 percent.

Diphenyl formamide: 2.5 percent.

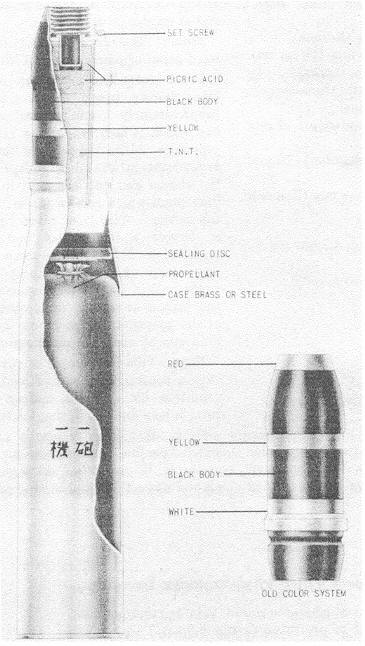

Figure 230 – Type 1 47-mm High-Explosive Projectile.
