| Japanese Explosive Ordnance – Army Ammunition – Navy Ammunition |
| Chapter 4 – Section 1 |
| ARMY PROJECTILES |
| 7.92-mm Aircraft Machine Gun Ammunition |
Ball |
A.P. |
Incendiary |
H.E. |
|
Over-all length |
3 5/32 inches. |
3 5/32 |
3 5/32 |
3 9/64 |
Lenght of case |
2 7/32 |
2 7/32 |
2 7/32 |
2 7/32 |
Lenght of projectile |
1 7/16 |
1 29/64 |
1 29/64 |
|
Weight of projectile |
180 grams. |
182 grams. |
182 grams. |
| Construction: |
|
Type |
Projectile Jacket |
Projectile Core |
|
Ball |
Gilding metal |
Lead. |
|
A.P. |
CuNi |
Hard steel. |
|
Incendiary |
CuNi |
W.P. and steel. |
|
H.E. |
CuNi |
P.E.T.N. and lead. |
| Weapons in which used: |
|
Bren type L.M.G. |
|
Type 98 flexible A.C.M.G. |
|
Type 100 flexible A.C.M.G. |
| Color and markings: |
| Type | Bands |
| A.P. | Black. |
| Incendiary | Magenta. |
| H.E. | White. |
|
Remarks: The Bren type L.M.G. uses a box-type magazine similar to the U.S.B.-A.R. The type 98 and type 100 A.C.M.G. use a saddle type magazine. |
|

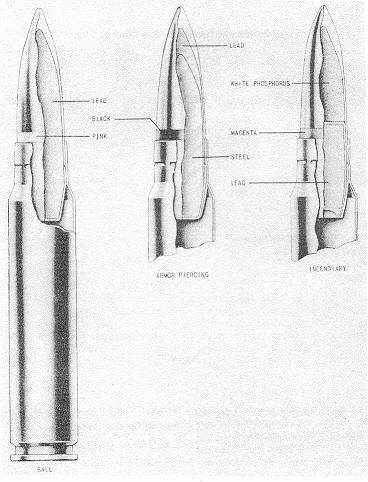

Figure 204 – 7.92-mm Aircraft Machine Gun Ammunition. |
|
|
|
|
