| Chapter 4 – Section 1 |
| ARMY PROJECTILES |
| Type 99 (Rimless) - 7.7-mm Ammunition |
|
Ball |
A.P. (inch) |
Tracer (inch) |
Wooden |
|
|
Over-all length |
3 9/64 inches. |
3 9/64 |
3 9/64 |
3 9/64 inches. |
|
Lenght of case |
2 1/4 inches. |
2 1/4 |
2 1/4 |
2 1/4 inches. |
|
Lenght of projectile |
2 17/64 inches. |
2 17/64 |
2 17/64 |
2 17/64 inches. |
|
Weight of projectile |
181 grams. |
|
|
5 grams. |
| Construction: |
|
Type |
Projectile Jacket |
Projectile Core |
|
Ball |
CuNi |
Lead. |
|
Tracer |
CuNi |
Lead. |
|
A.P. |
CuNi |
Hard steel. |
|
Blank |
Projectile of wood. |
|
|
Blank |
Projectile of paper. |
| Weapons in which used: |
| Rifle | L.M.G. | H.M.G. |
| Type 99 rifle. | Type 99 L.M.G. | Type 92 H.M.G. |
| Type 99 modified rifle. | Type 97 TK.M.G. | Type 1 H.M.G. |
| Type 2 rifle. |
| Color and markings: |
| Type | Bands |
| Ball | Pink. |
| Tracer | Green. |
| A.P. | Black. |
| Blank | Wood. |
| Blank | Paper (purple). |
|
Remarks: The heavy machine guns use feed strip of 30 rounds. When used in light ma-chine guns and the rifle, this ammunition is packed in 5-round clips. |
|
In addition to the usual brass cartridge cases, ammunition with a steel case been found. |
|

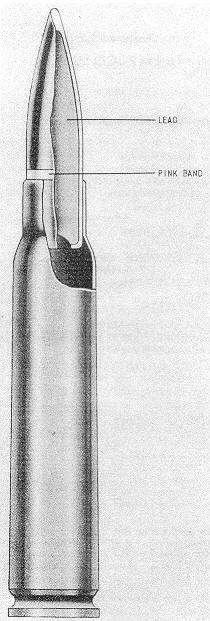

Figure 202 – Type 99 (Rimless) 7.7-mm Ammunition. |
|
|
 |
