Chapter 4 – Section 1
ARMY PROJECTILES
Propellant Charges used for various Weapons

Weapon

Type of propellant

Weight of
propellant
(kg)

Number of
increments

Weight of
increments

Type 4-year howitzer

Mk 2 square grain

2.260

5

A 865 g
B 225 g
C 255 g
D 445 g
E 440 g

Type 38 howitzer

Mk 1 square grain

0.825

2

A 500 g
B 325 g

Type 96 howitzer

Mk 2 square grain

2.930

5

A 980 g
B 280 g
C 440 g
D 520 g
E 710 g

Type 45 gun
Type 7-year gun
Type 90 gun

Mk 5 strip

16.650

3

A 5.50 kg
B 5.50 kg
C 5.50 kg

Type 89 gun

Mk 4 Strip

9.700

2

A 8.00 kg
B 1.70 kg

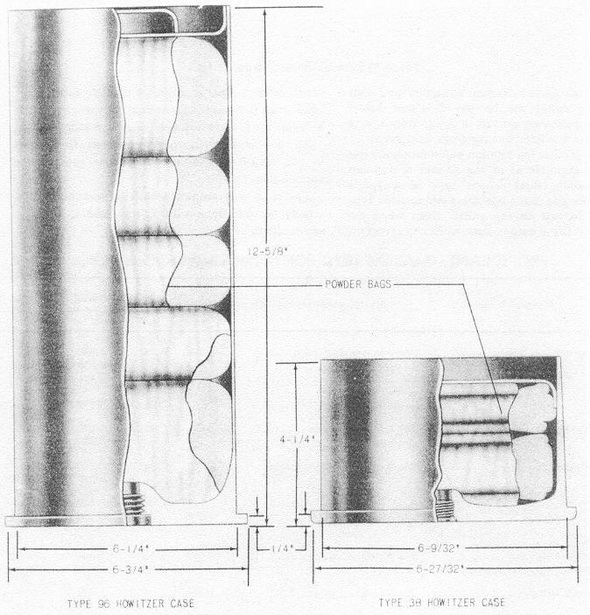

Figure 282 – 150-mm Type 38 Howitzer Case.

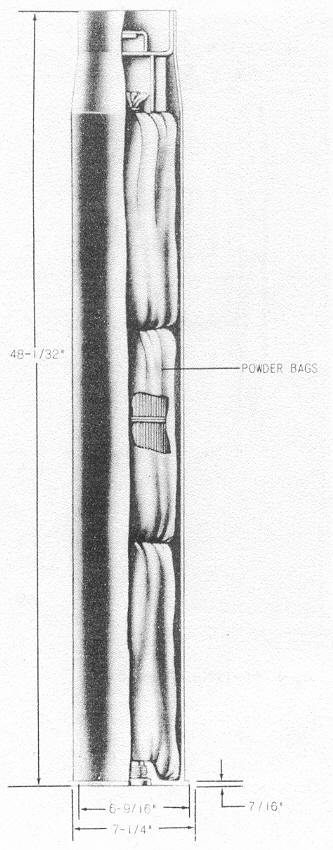

Figure 283 – 15-cm Ammunition.

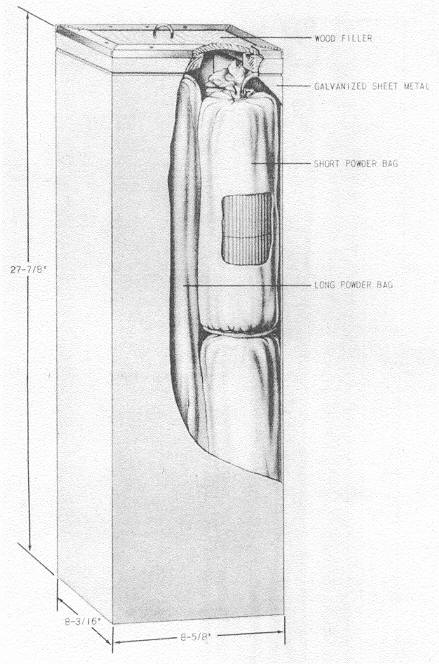

Figure 284 – 150-mm Powder Box.

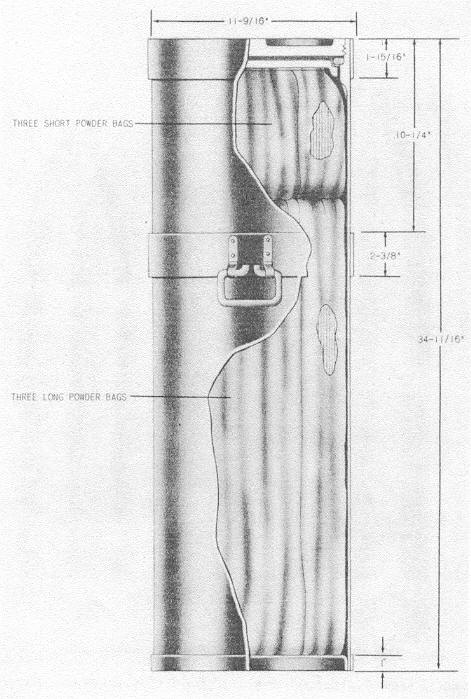

Figure 285 – 15-cm Ammunition.
