Type 90 - 7-cm (75-mm) Shrapnel Projectile
Weight of projectile, filled: 7.00 kg. (15.4 pounds).

Bursting charge: 0.100 kg. (0.22 pounds). Black powder contained in base of the projec-tile and in a central brass tube.

Shrapnel filled: Approximately 272 lead balls (10.5 grams each) packed in a rosin matrix. The balls are separated from the bursting charge in the base by a steel disc which rests on a shoulder in the projectile cavity.

Diameter at bourrelet: 75 mm (minus tol.).
Length over all (without fuze): 235 mm (9 1/4 inches).
Length protruding from case (without fuze): 197 mm (7 3/4 inches).
Width of rotating band: 10 mm.
Fuzing: Type 5th year combination time and impact fuze.
Weapons in which used:

Type 41 mountain gun (regimental gun): Case, 7 1/4 inches.

Type 94 mountain gun: Case, 11 9/16 inches.

Type 38 field gun group: Case, 11 9/16 inches.

Type 90 field gun: Case, 16 9/16 inches.

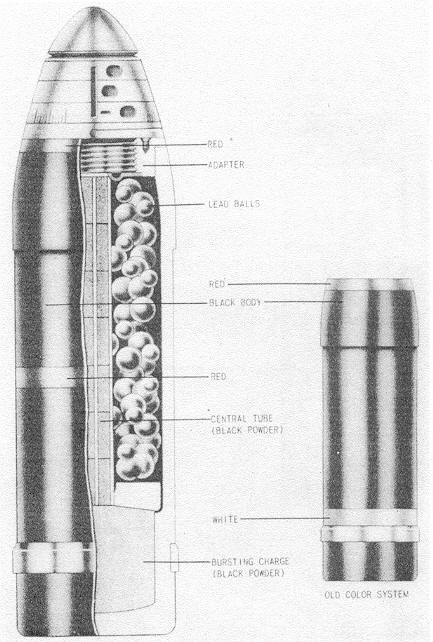

Figure 261 – Type 90 7-cm Shrapnel Projectile.
