Chapter 4 – Section 1
ARMY PROJECTILES
Type 90 "A" - 7-cm (75-mm) Substitute Projectile
Weight of projectile, filled: 6.92 kg. (15.25 pounds).
Weight of filling: 0.10 kg.
Filling: Black powder.
Diameter at bourrelet: 75 mm (minus tol.).
Lenght over-all (without fuze): 256 mm (10 1/16 inches).
Length protruding from case (without fuze): 218 mm (8 9/16 inches).
Width of rotating band: 10 mm.

Fuzing: Type 88 instantaneous nose fuze (gun type); type 88 short-delay nose fuze (gun type).

Weapons in which used:

Type 41 mountain gun (regimental): Case, 7 1/4 inches.

Type 94 mountain gun: Case, 11 9/16 inches.

Type 38 field gun group: Case, 11 9/16 inches.

Type 90 field gun: Case, 16 11/16 inches.

Remarks: This projectile is made of cast iron and has very thick walls.

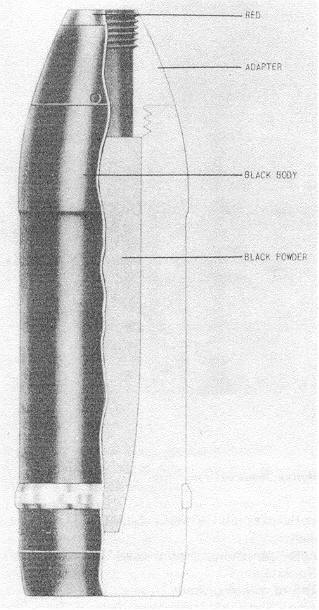

Figure 256 – Type 90 "A" 7-cm Substitute Projectile.
