Chapter 4 – Section 1
ARMY PROJECTILES
Classification of Japanese Army 75-mm Guns by Size of Chamber
(Size of Propellant Case)
Size
of
case
Weapon
Marking on case
A
Type 41 mountain gun (regimental gun)
(Rare) Written vertically



Type 94 mountian gun
Written vertically
B
Type 38 field gun
Appears as Shown*



Type 41cavalry gun
Appears as Shown*



Type 38 improved field
Appears as Shown*



Type 95 field gun
Appears as Shown*
C

Type 11 year field/A.A. gun
Type 90 field gun
Written vertically



Type 1 self-propelled gun
Written vertically
D
Type 86 field/A.A. gun
Type 88 field/A.A. gun (special)
Written vertically

* For convenience in reference, this group, in which the propellant case bears the mul-tiple designation for four weapons, will be termed "Type 38 Field Gun Group".

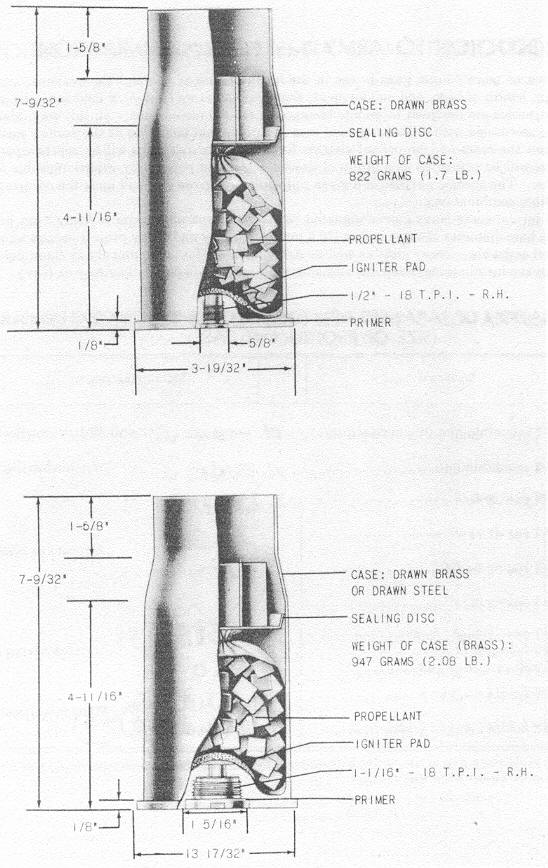

Figure 243 – 7-cm Propellant Cases.

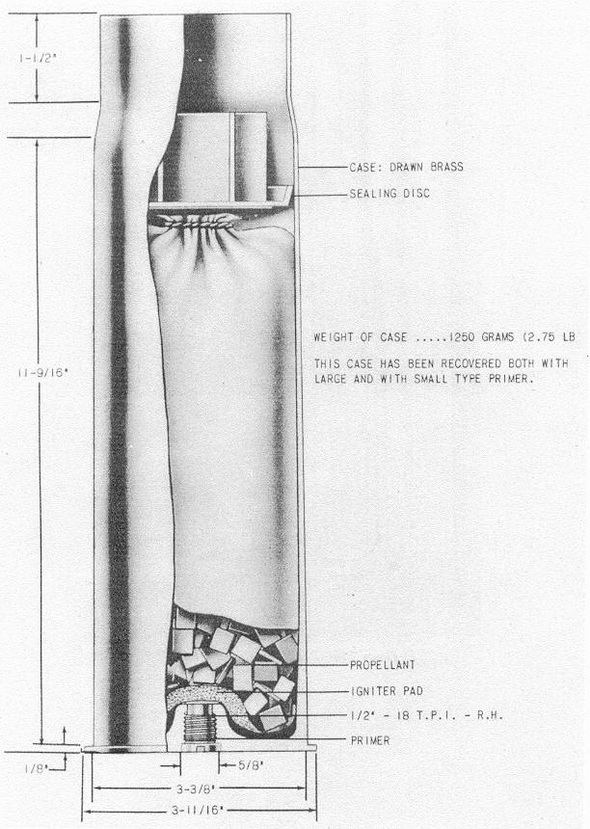

Figure 244 – 7-cm Propellant Case.

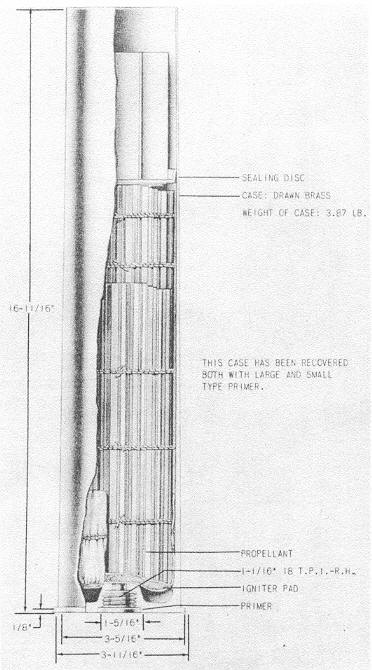

Figure 245 – 7-cm Propellant Case.

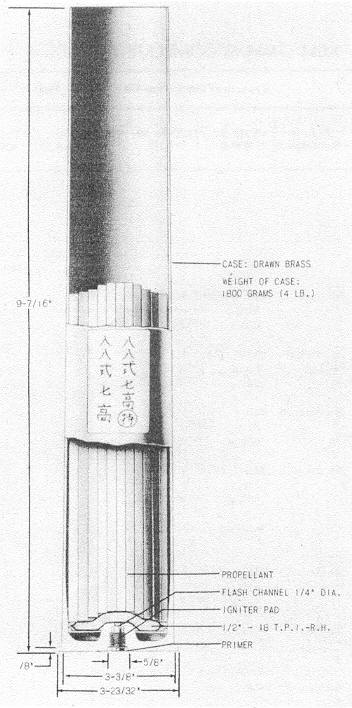

Figure 246 – 7-cm Propellant Case.
